TSG-17 110V RF Signal Generator 100kHz-150MHz High Frequency AM/FM Radio with Power Cord for Home & Commercial Use - Perfect for Electronics Testing, Radio Repair, and DIY Projects
$44.99
$59.99
Safe 25%
TSG-17 110V RF Signal Generator 100kHz-150MHz High Frequency AM/FM Radio with Power Cord for Home & Commercial Use - Perfect for Electronics Testing, Radio Repair, and DIY Projects
$44.99
$59.99
25% Off
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
9 people viewing this product right now!
SKU: 23587683
Guranteed safe checkout
Description

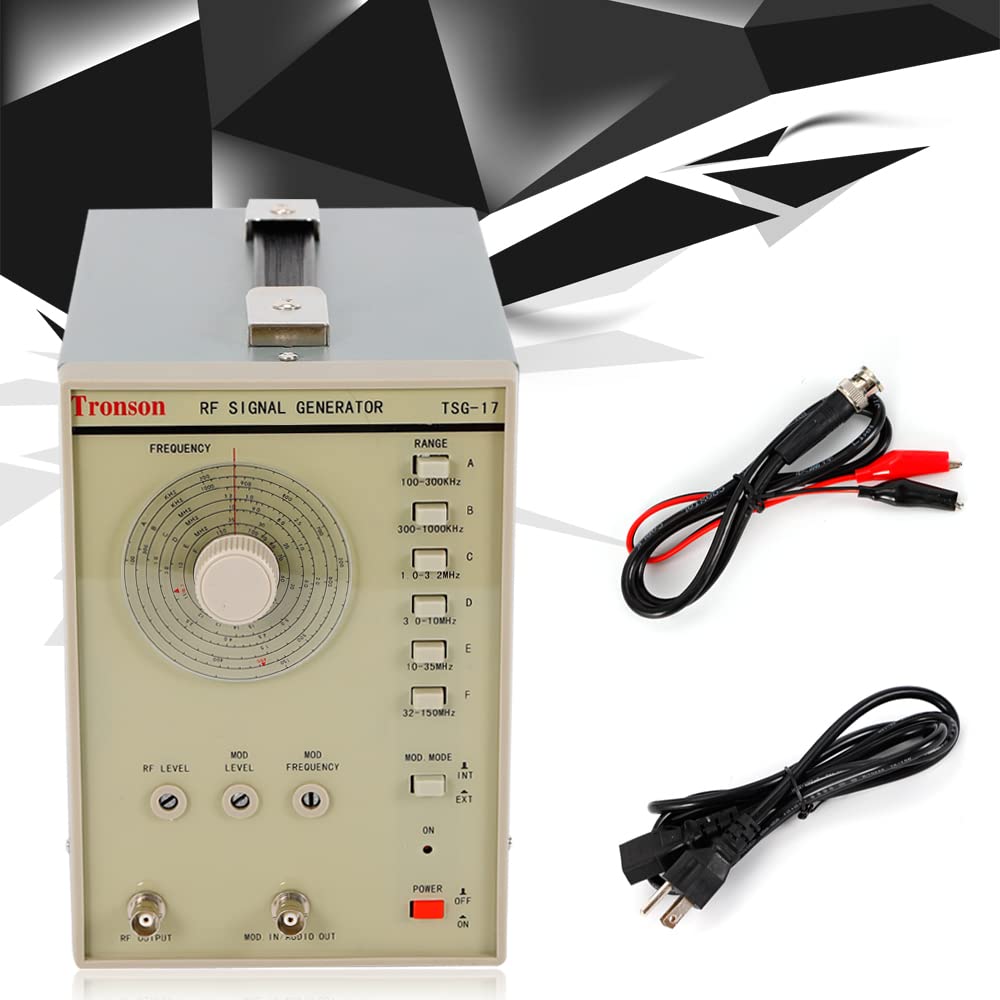

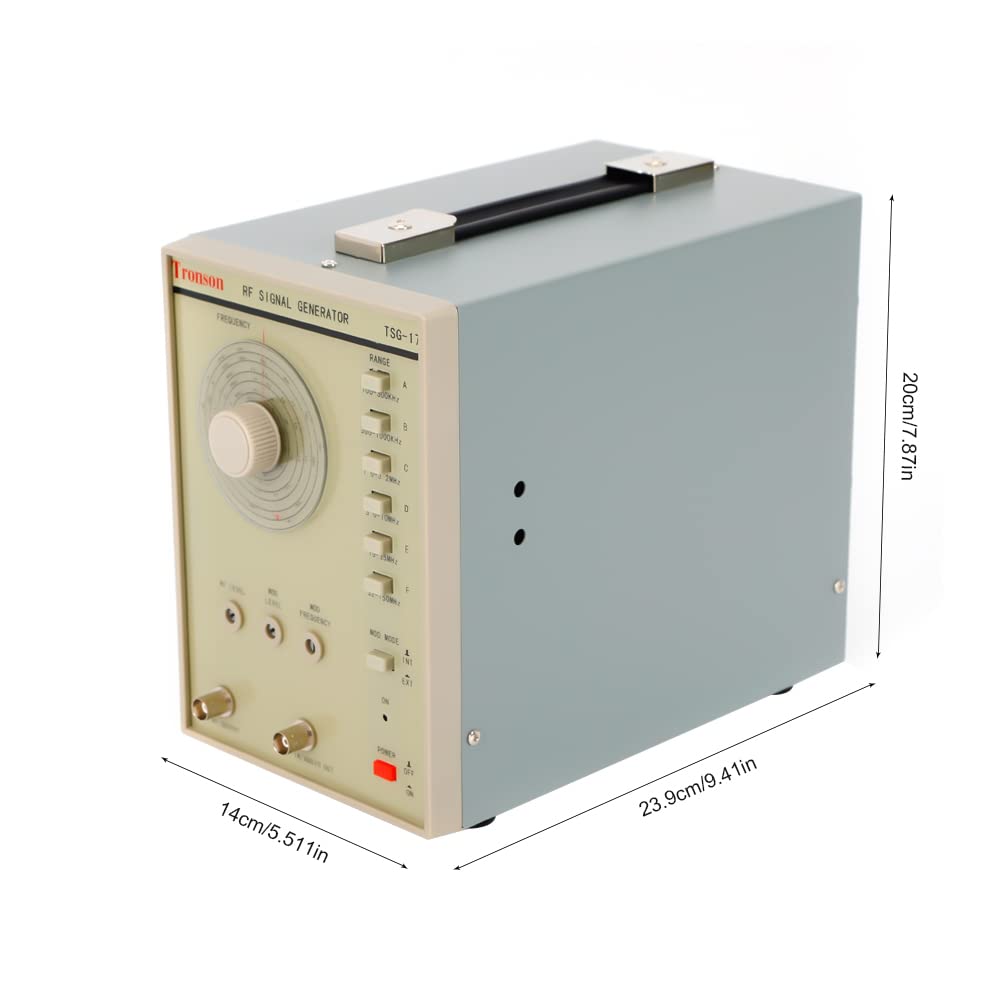

SpecificationsFrequency Ranges:A: 100 KHz to 300 KHzB: 300 KHz to 1MHzC: 1MHz to 3.2MHzD: 3MHz to 10MHzE: 10MHz to 35MHzF: 32MHz to 150MHzFrequency range: 100 KHz to 150MHz (3 harmonic wave up to 450MHz)Frequency accuracy: Over±10% Output waveform: RF/AM signal waveformOutput impedance: 600ΩRadio frequency output: Over 100Mv rms (when frequency ≤ 35MHz)Level control: 1mV to100mVExternal modulation: 150Hz to 1.5 KHz. Amplitude from 0 to 30% adjustable.Norml operation: 50Hz to 20 KHz for any setting.Temperature/Humidity: 10 oC to 35 oC/with 85%RHPower supply: 110V+/-10%, 50Hz/60HzDimensions: 239*140*200mmWeight: about 2.5kgPackage Included1x 110V Signal Generator1x Power Cord1x Clip cable1x Instruction manual
More
Shipping & Returns
For all orders exceeding a value of 100USD shipping is offered for free.
Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.
Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.
Reviews
*****
Verified Buyer
5
This signal generator has a stable Oscillator, but needed a touch up on calibration. When I received it, it had a "rattle" inside the brand new instrument. I opened it and one of the ferrite slugs had backed off the tuning coil that calibrated the highest frequency. It was very easy to put this back and recalibrate it, rather than send it back.I bought this for tuning the Intermediate Frequency (IF Transformers) in my antique tube radio. It does have a modulated tone that can be mixed with the 455 KHz signal making it a very valuable tool. This feature is not found on any Signal Generator for under $250. Therefore, it's a bargain! But don't expect the dial to be very accurate. Having a digital frequency counter makes this work superbly!
